00:15The following is an instructional video on how to install the YSHG family of connectors.

00:21Today, we'll be using a YSHG 3434. Note, these connectors can be

00:27installed using the PAT 750 Y 750 Y 45 or Y 46 and

00:34pat 46 with recommended dyes.

00:37Other Bernie tooling options may be available contact Bernie for more information,

00:43determine the rebar size, determine the conductor size,

00:51choose appropriate connector of required size based on conductor size,

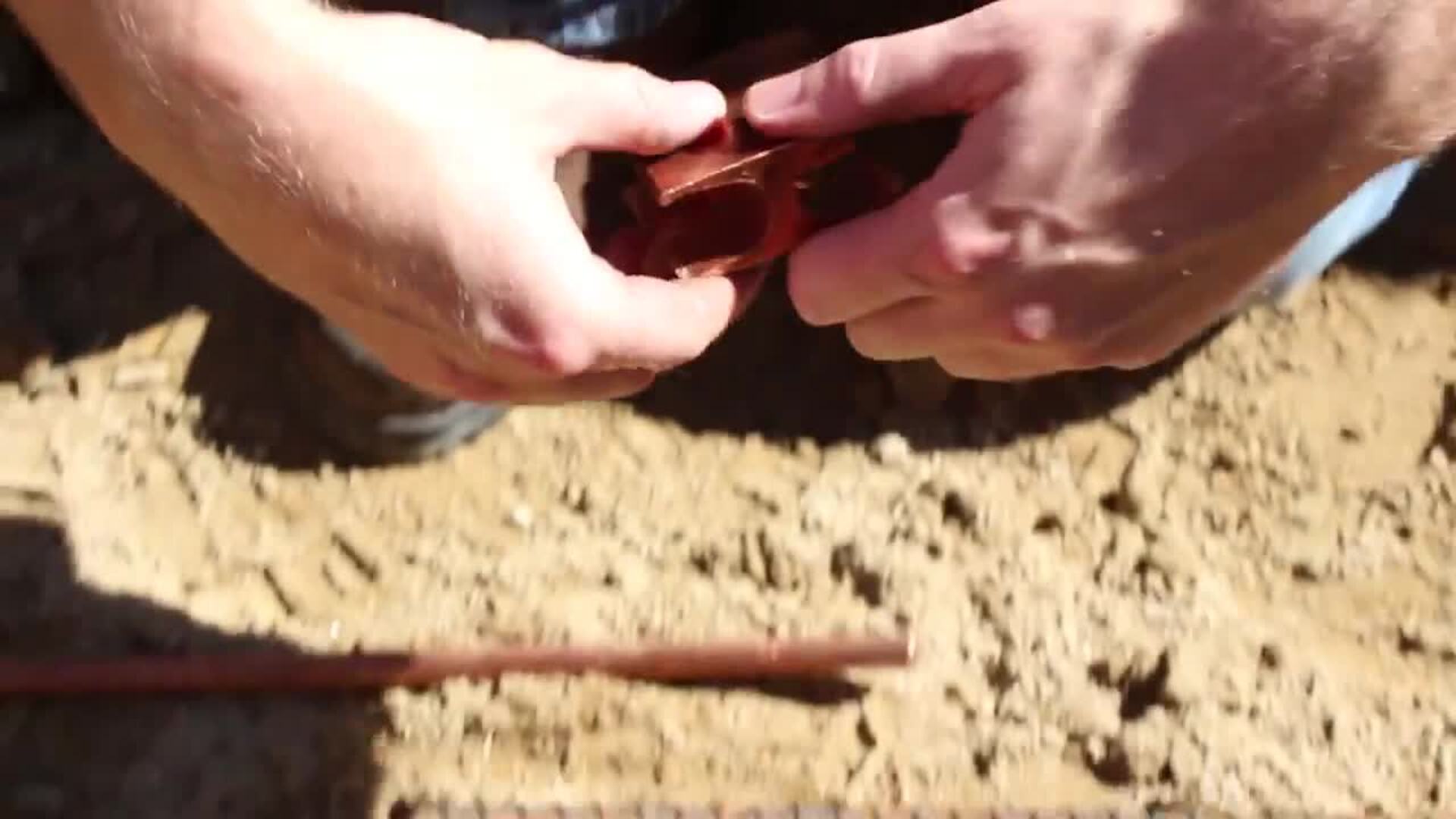

00:56rod size or rebar size position, the connector on rebar and conductor

01:07place the Burnie U 1104 crimping dye in the pat 750 L I

01:15begin crumping the connector on the inside edge of the connectors slot.

01:23Now crimp the other inside edge of the connector slot,

01:30place a 3rd and 4th cramp on the outside edges of the connector,

01:43inspect the emboss and compare to dye marking on the connector to confirm a proper connection

01:49was made for more information about the Burnie high ground YSHG

01:553434 and other Bernie products visit bernie.com
