1.5" Square Shaft Lead (SS5), 10/12 x 7ft
By CHANCE Foundation Solutions
Catalog ID: C1500051
By CHANCE Foundation Solutions
Catalog ID:
C1500051

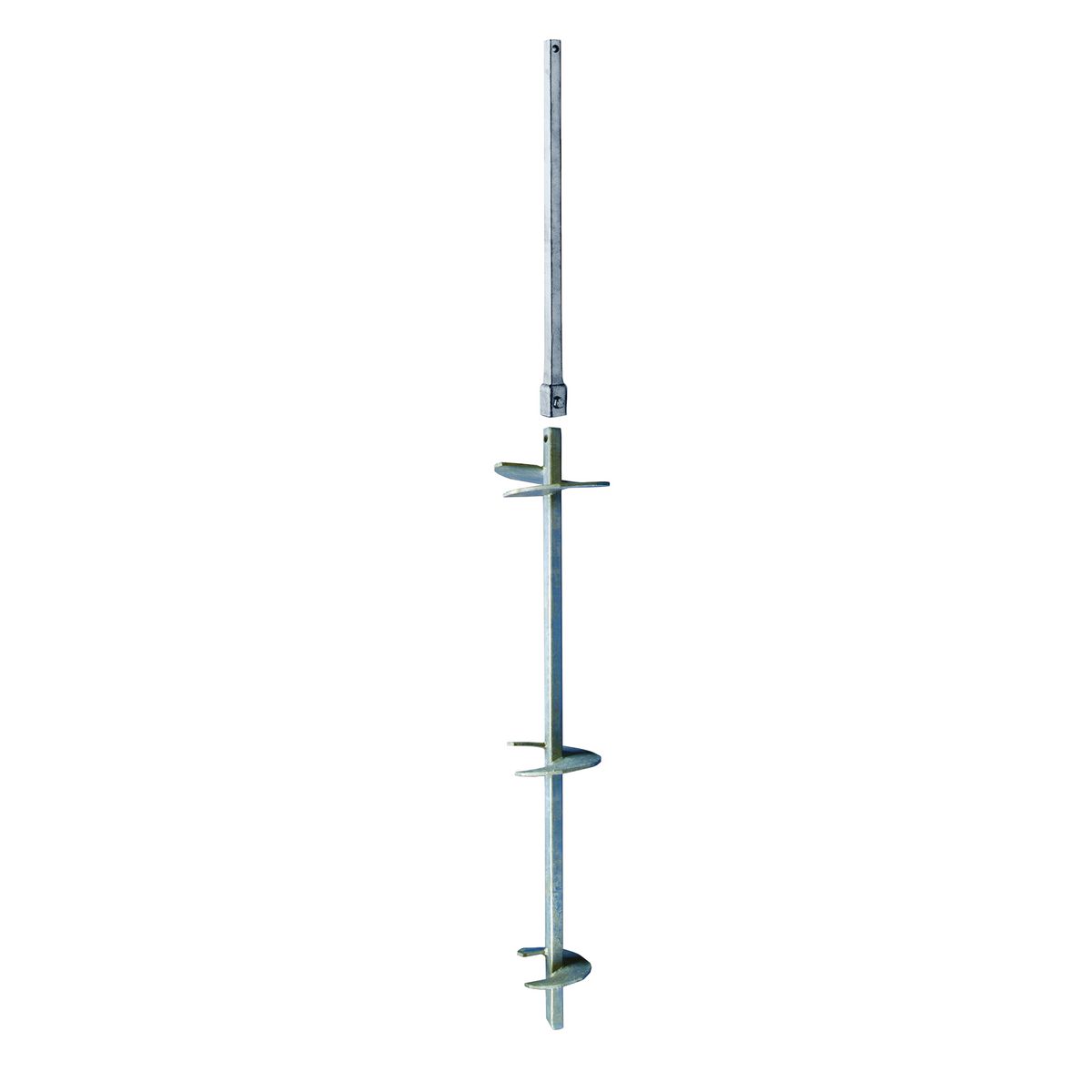

SS5, 84" long with 10",12" helices.
The CHANCE Square Shaft Lead is used to transfer surface loads into bearing layers of soil. The Helical Square Shaft system is used in applications where tension, compression or both types of structure loading is required. It provides a predicatable foundation solution for significant load capacities
- Finish: Galvanized
- Capacity of helical pile can be determined by measuring installation
Product Details
General
| Application | Helical Anchoring |
| Capacity - Plate Grade | 50 |
| Coating | Hot Dip Galvanized |
| Helix Leading Edge Type | Sharp |
| Holding Capacity Soil (Kt) | 10 |
| Number of Helices | 2 |
| Shaft Type | SS |
| Torque Rating | 5700 ft-lbs |
| Type | Lead Sections |
| UPC | 096359011798 |
Dimensions
| Anchor Helix Diameter(s) | 10 in - 12 in |
| Length | 83.25 in |
| Length - Effective | 76.16 in |
| Weight | 77.00 lb |
Certifications and Compliance
| ICC-ES Evaluated | ESR 2794 |
| LARR Certified? | RR 25984 |
Logistics
| Pallet Quantity | 20 |
Resources and Downloads
Specifications
Literature
ISO Certificates
Sales Drawings
Videos
