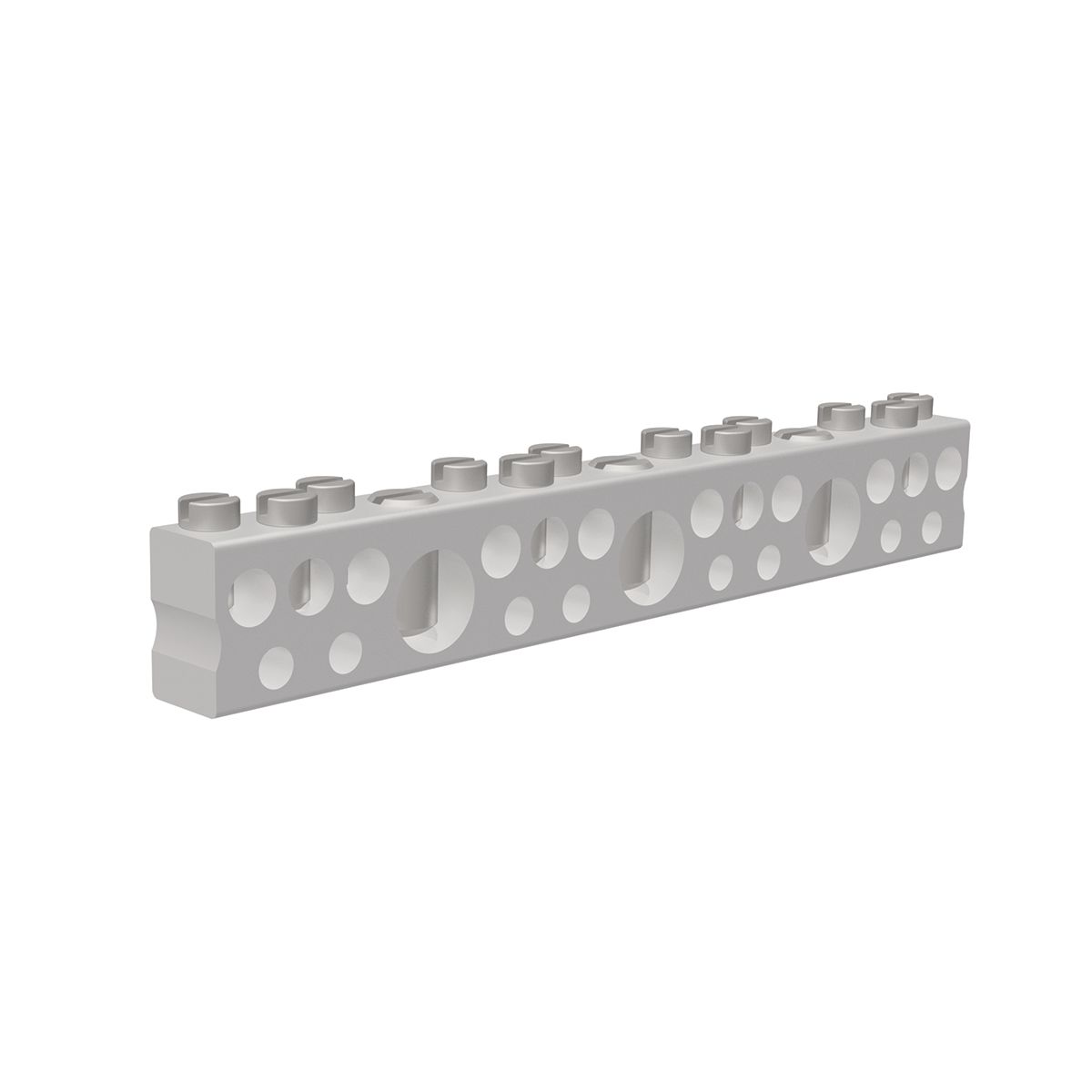

K12P6C3P1/0CAG1, AL Neutral Bar, #14-1/0 AWG, #14-6 AWG, 15 Circuits

By Burndy

Catalog ID: K12P6C3P1/0CAG1

By Burndy
Catalog ID:  K12P6C3P1/0CAG1
Dual rated Aluminum Neutral bar for copper and aluminum conductors, 15 Circuits, 14-1/0 AWG , 14-6AWG wire range.
Add to List

More Options

Where to Buy

Product Details

General

Material Aluminum
Plated N
Plating Type Unplated
UPC 781810659137
UPC 12 Digit 7818106591377

Dimensions

Dimension - Height inch 0.62 in
Dimension - L Length Overall mm 110 mm
Dimension - Length Overall inch 4.34 in
Dimension - Width inch 0.38 in

Electrical Ratings

Rating - Minimum Voltage 600

Conductor Related

Conductor - AL Str Size Range (3) 14-1/0 AWG , (12) 14-6 AWG
Conductor - Copper Str Size Range (3) 14-1/0 AWG , (12) 14-6 AWG
Number Of Conductors 15

Certifications and Compliance

Certification - CSA Approved Yes
Certification - ETL No
Certification - UL Recognized Yes
Certification - cULus No
Standards - RoHS Compliance Status EX
UL Listed No

Logistics

Carton Quantity 150
Minimum Pack Quantity 1

Resources and Downloads

Customer Notices

Sales Drawings
