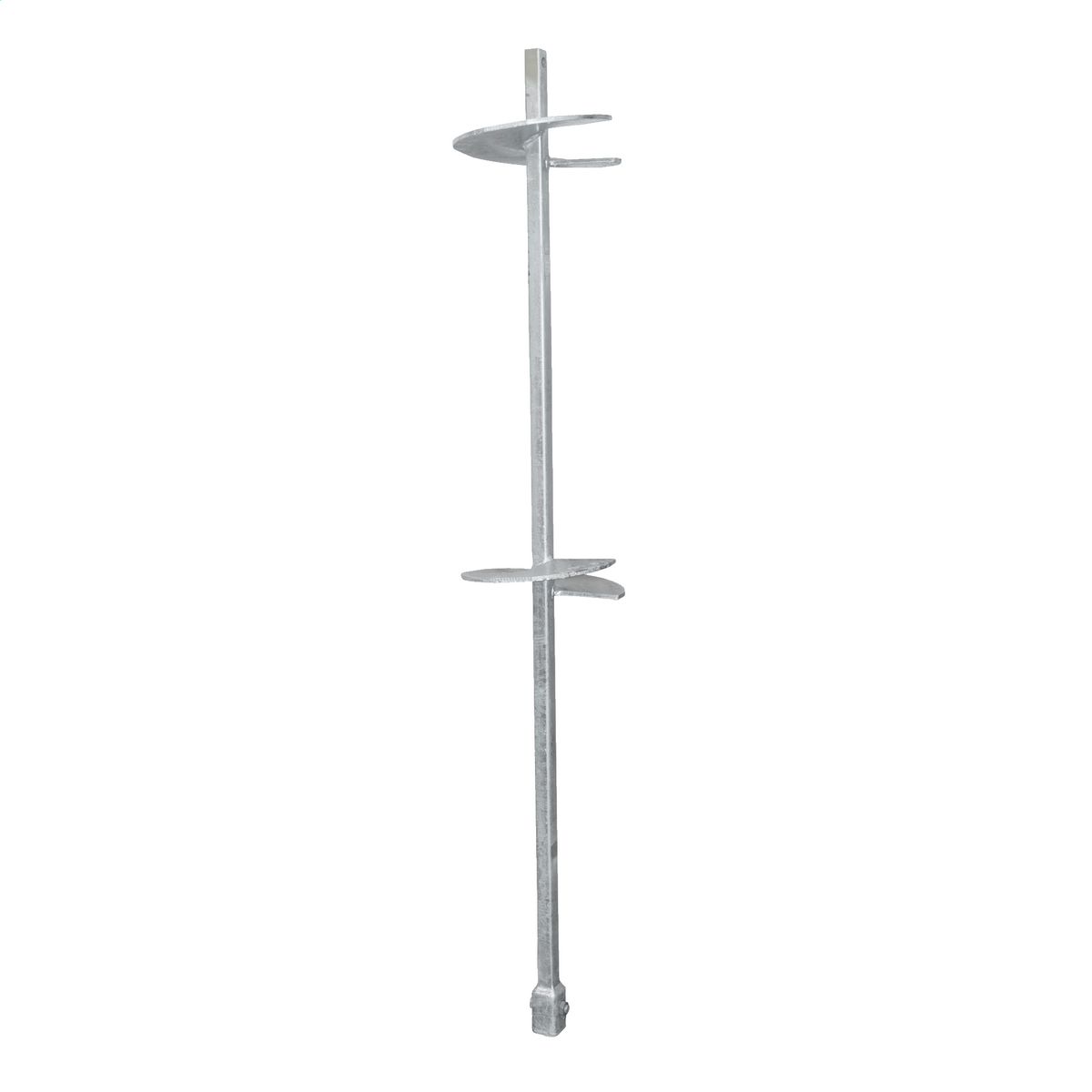

2" Square Shaft Helical Extension(SS200), 14/14 x 7ft
By CHANCE Foundation Solutions
Catalog ID: C1100581
By CHANCE Foundation Solutions
Catalog ID:
C1100581
SS200, 7' (2134 mm) with 14"/14" helices
The CHANCE Square Shaft Extension is used to extend the pile length so that the Lead section is placed at the proper depth. The Helical Square Shaft system is used in applications where tension, compression or both types of structure loading is required. It provides a predicatable foundation solution for significat load capacities
- Finish: Galvanized
- Capacity of helical pile can be determined by measuring installation
Product Details
General
| Application | Helical Anchoring |
| Coating | Galvanized, ASTM A-153 |
| EU RoHS Indicator | No |
| Number of Helices | 2 |
| Strength Note | Ultimate strength ratings apply to properly installed anchors only. Failure to install within 5 ° of alignment with the guy load may significantly lower strength. |
| Tensile Strength | 150000 lb. |
| Torque Rating | 16000 ft-lbs |
| Type | Anchor Extensions |
| UPC | 096359010036 |
Dimensions
| Anchor Helix Diameter(s) | 14 in - 14 in |
| Length | 80.000 in |
| Weight | 148.715 lb |
Logistics
| Pallet Quantity | 12 |
| Standard Package | 1 |
Resources and Downloads
Literature
ISO Certificates
Sales Drawings
Videos
CHANCE Square Shaft Anchor Tools Selection Process (VI0651E)
CHANCE Square Shaft Anchor Installation (VI0655E)
