More Power and Less Heat

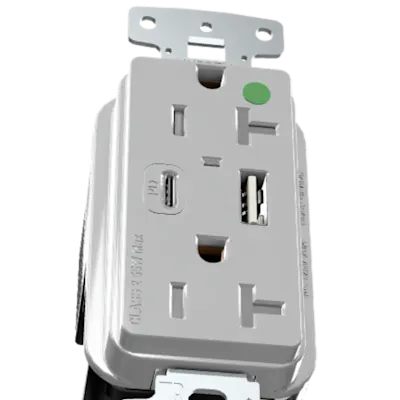

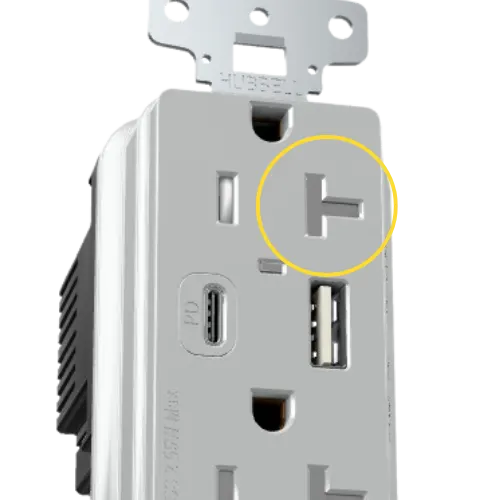

A combination TR receptacle with 2 USB ports. The receptacle section supplies AC electrical power for appliances. The USB ports provide low voltage power to charge personal electronics.

Can be used to replace any existing receptacle where the user wants to add the additional ability to charge using USB ports. This is ideal for areas where personal electronics are used and stored.

Yes, as long as the single gang box is of a minimum size of 2" wide x 3" high x 2-1/2"deep. Recommendation is to use a more voluminous box. In rework situations, you can use box #1004LUBAR (3" deep) with a pair of rework brackets #820DBar.

The industry has standardized USB Power Delivery and battery charging specification USB BC1.2. Tablets, phones, gaming devices and other products using USB charging are compatible.

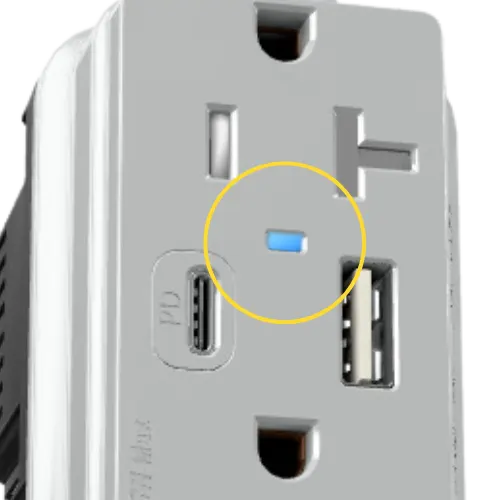

A LED indicator shows when the device is capable of providing energy and when it is providing it. If the light is white, power is available. If it is blue, it is charging a connected device.

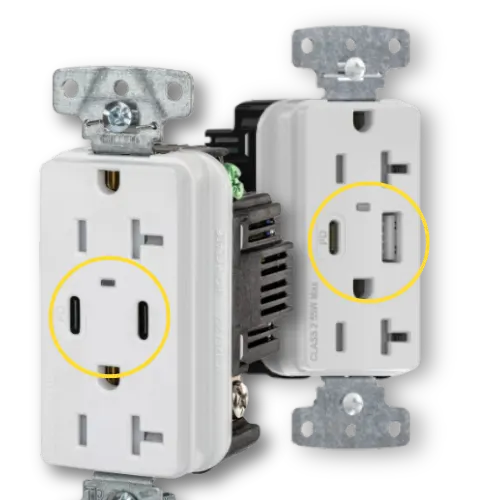

Yes, the USB charger receptacle delivers up to 52.5W when both ports are in use. If two tablets are charging, the USB PD ports will charge at up to 45W and the convenience port will charge at 5V 1.5amps.

It will take approximately two hours to fully charge an iPad from 0% to 100% when charging at 30W.

While in sleep mode it will consume less than 0.1 watts. When fully used the ports will consume 55 watts. If the product is used six hours a day for a year, it will consume less than $20.00 @ $0.16 per kilowatt hour. If never used, it will cost about $0.15 per year.

The USB charger receptacle uses a transformer to isolate the AC power from the DC powered circuitry. It offers inherent protection of the components and to itself.

Yes. We have tested three USB charger receptacles on a circuit, with no negative effects on any products or false tripping.

Vertically mounting the ports assures the maximum distance between electrical plugs and USB ports so that they are easy to insert and remove.

The USB charger receptacle has been developed to last many years and carries a 2 year warranty. The USB ports are made of heavy-duty stainless steel and are rated for 10,000 cycles.
