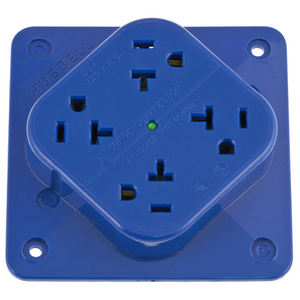

Surge Protective Devices, 4-PLEX, Surge Suppression Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Blue.
Brand: Hubbell Wiring Device-Kellems
Catalog ID: HBL420S
4-PLEX, Surge Suppression Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R
Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
- Surge supression with lights, 80 joules/6500A per mode
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
Product details
General
Application
- 4-Plex with LED
Catalog Number
HBL420S
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
No
Horsepower - Maximum
1
Indicator(s) Type
LED Only
Item Type
Surge Protection Receptacles
Material
Polycarbonate
Material - Mounting Hardware
Mounting Screws
Number Of Poles
2-Pole
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Outlet
Straight Blade
Performance
- Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498
- Dielectric Voltage: Withstands 2,000V minimum
- Mechanical: Product Identification: Ratings are a permanent part of the device
- Terminal Accommodation: #12 AWG stranded or solid copper conductor only
- Terminal Identification: Terminals identified in accordance with UL 498 and CSA
- Environmental: Flammability: UL 94 V-2
- Operating Temperatures: Maximum continuous 75°C
- minimum -40°C (w/o impact)
Response Time
5
Series
4-Outlet Receptacle
Specifications
- Base - PBT
- Face - Polycarbonate
- Ground Contacts - .031 in. (.8) Brass
- Ground Plate - .032 in. (.8) Plated Steel
- Power Contacts - .032 in. (.8) Brass
Style
Surge Suppression
UPC
783585017877
Dimensions
Dimensions
4.30 in x 0.92 in x 4.30 in
Display Size
Standard
Height
4.3 in
Length
4.3 in
Weight
0.35 lb
Width
0.92 in
Electrical Ratings
Amperage Rating
20 A
Connectivity
Terminal Screws
Current / Amperage Rating
20 A
Current Rating
20 A
Dielectric Strength
Withstands 2,000V minimum
Frequency Rating
60 Hz
Phase
Single Phase
Voltage Rating
125 V
Voltage Rating Description
125 V
Conductor Related
Number Of Wires
3-Wire
Wire Size
#12 AWG
Certifications And Compliance
Buy America(n) Qualified
TAA Compliant (All status valid till December 2024)
Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285
- Listed to UL Standard 498 File E2186
- NEMA® WD-6 Compliant
Nema Rating
5-20R
Logistics
Carton Quantity
5
