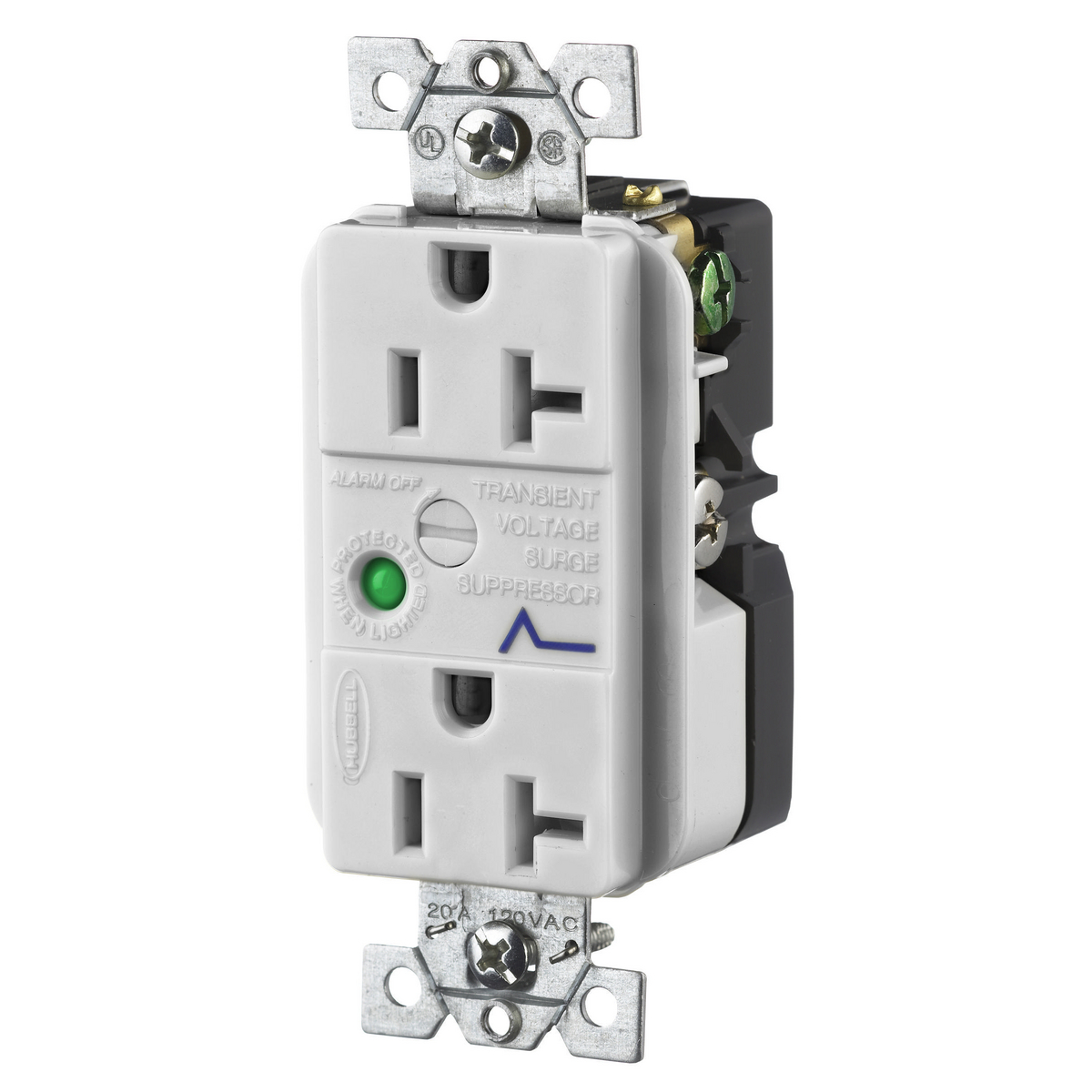

TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Office White
Brand: Hubbell Wiring Device-Kellems
Catalog ID: HBL5362OWSA
TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Office White
Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
Product details
General
Application
Decorator Duplex with Light and Alarm
Catalog Number
HBL5362OWSA
Color
Office White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
No
Indicator(s) Type
LED and Audible Alarm
Item Type
Surge Protection Receptacles
Material
Composite
Material - Mounting Hardware
Mounting Screws
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Outlet
Straight Blade
Performance
- Electrical - Protection Modes - Normal and Common Modes
- Electrical - Response Time - Approximately 5 ns
- Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs)
- Electrical - Voltage - 120V AC + 10% - 15%
- Environmental - Flammability - UL 94V-2
- Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Response Time
5
Series
Specification Grade
Specifications
- Base Material - Nylon
- Contact Design - Tandem Modified Bypass
- Face Material - Nylon
- Mounting Strap - .050" (1.3) Steel-Zinc Coated
- Power Contact - .031" (.8) Brass
Type
Duplex
UPC
783585060293
Dimensions
Display Size
Standard
Electrical Ratings
Amperage Rating
20 A
Connectivity
Terminal Screws
Current / Amperage Rating
20 A
Current Rating
20 A
Frequency Rating
60 Hz
Phase
Single Phase
Voltage Rating
125 V
Voltage Rating Description
125 V
Certifications And Compliance
Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42
- Listed to UL Standards 498
- UL Listed File E2186
Nema Rating
5-20R
Logistics
Carton Quantity
10
