Locking Devices, Twist-Lock®, Watertight Safety Shroud, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal and White

By Hubbell Wiring Device-Kellems

Catalog ID: HBL2811SW

Locking Devices, Twist-Lock®, Watertight Safety Shroud, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal and White

By Hubbell Wiring Device-Kellems

Catalog ID: HBL2811SW

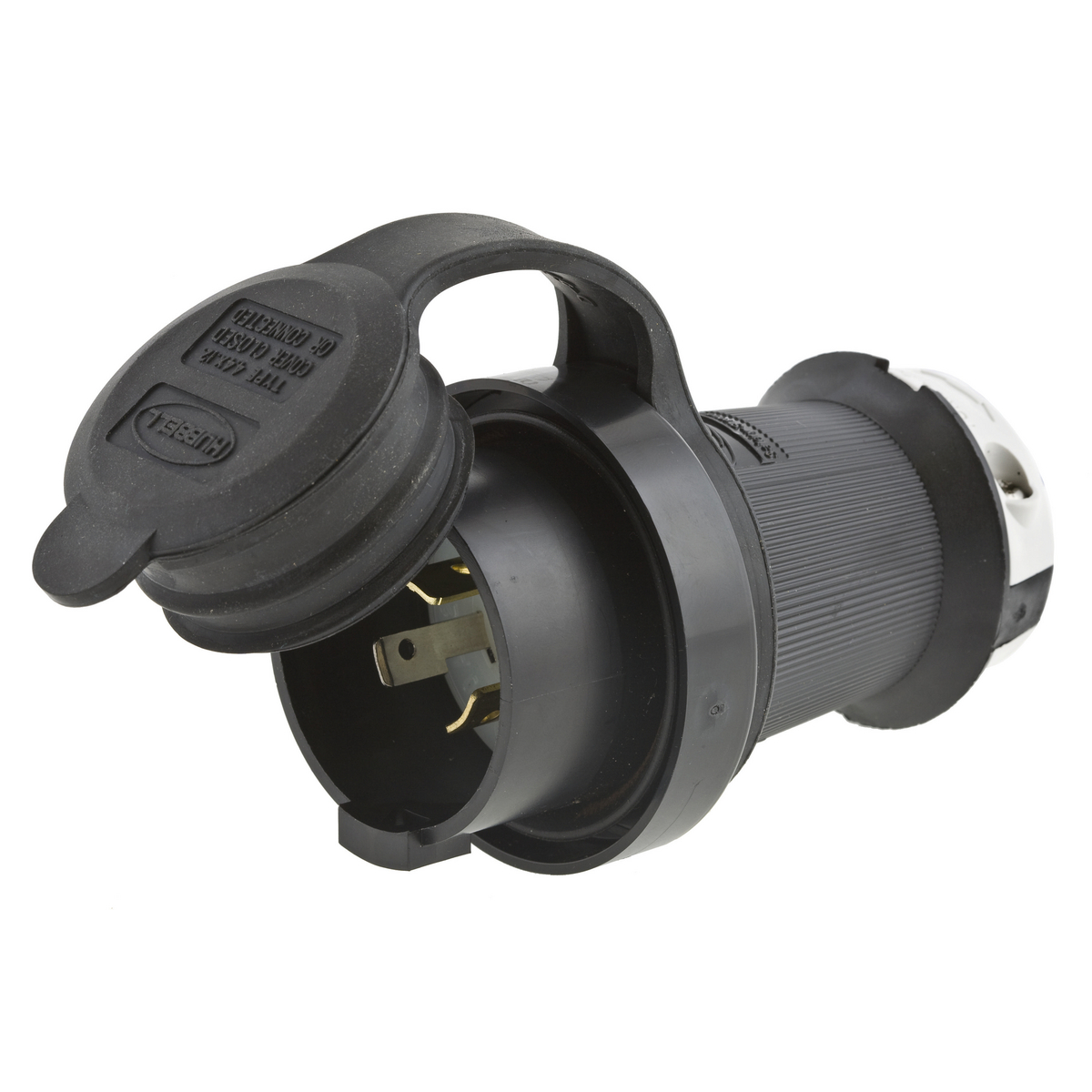

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 30A 3-Phase WYE 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-30P, Screw Terminal , Black PBT housing, White PBT clamps.

UL Type 4X Environmental seal protects connection while in use.
Impact resistant shroud protects blades against bending and breaking.
Reduces exposure to arcing when connecting or disconnecting under load.
Superior cord grip design protects terminations from excess strain.

Shrouded Watertight Construction

Add to List

More Options

Where to Buy

See locations

General

Application	Extra Heavy Duty Industrial
Cord Range	0.350"-1.150" (9-29)
Environmental Conditions	Watertight
Horsepower - Maximum	3
Item Type	30A Watertight Safety-Shroud® Plug
Material	Composite
Material - Mounting Hardware	Cord Mounted
Number Of Poles	4-Pole
OEM Brand Name	Hubbell Wiring Device-Kellems
Operating Temperature	Maximum continuous 60°C and minimum -29 °C
Performance	Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17 Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type	Plugs Plugs
UPC	783585232089

Dimensions

Dimensions	2.94 in x 2.94 in x 4.40 in
Display Size	Standard Sized
Height	4.40 in
Length	2.94 in
Weight	0.70 lb
Width	2.94 in

Electrical Ratings

Amperage Rating	30 A
Connectivity	Pressure Terminal Screws
Current / Amperage Rating	30 A
Current Rating	30 A
Dielectric Strength	Withstands 2,000V minimum
Phase	3 Phase WYE
Voltage Rating	3 Phase WYE 120/208 VAC
Voltage Rating Description	3-Phase Y 120/208 VAC
