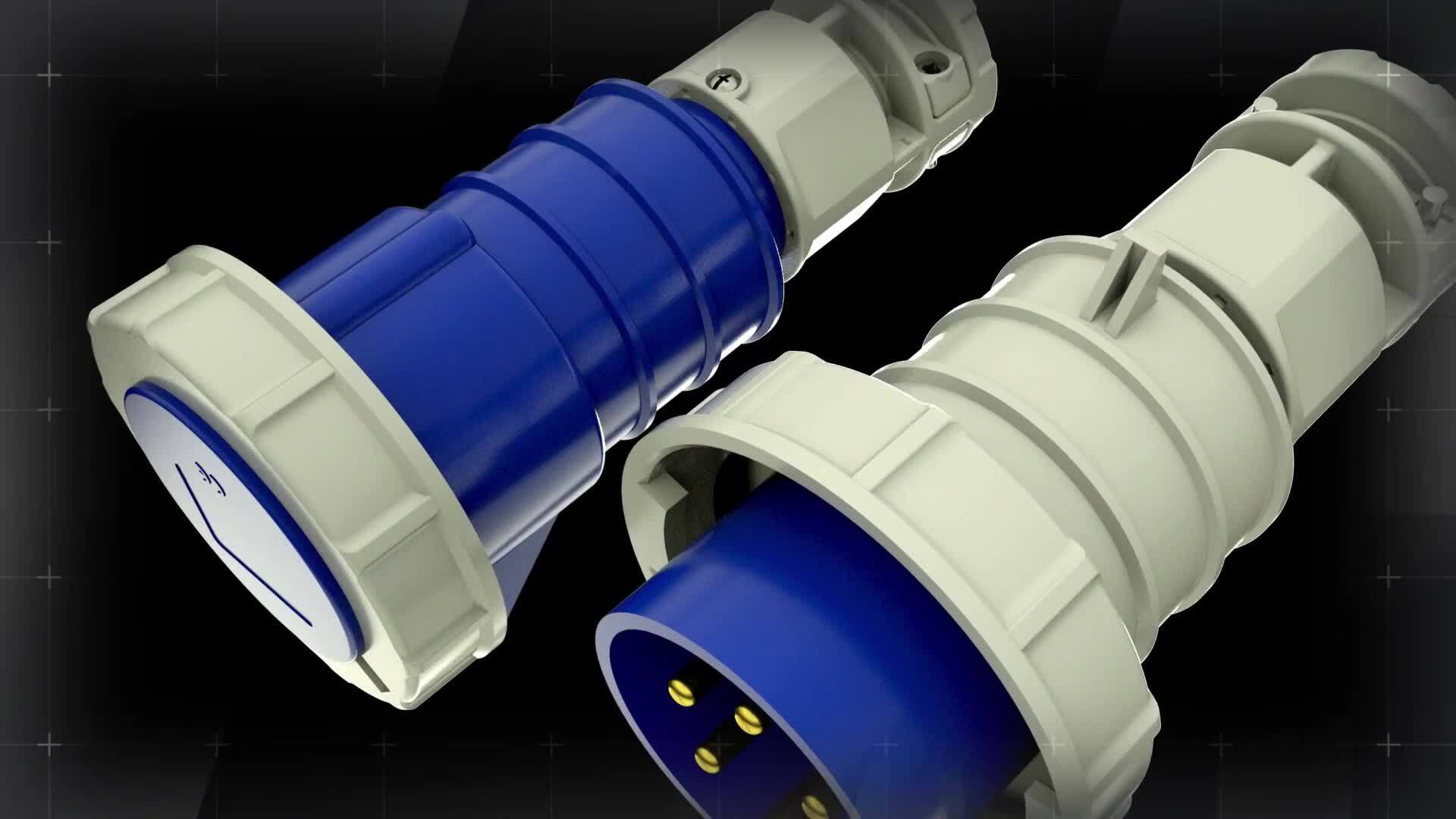

00:06Introducing Hubbell PRO IEC Pin and Sleeve wiring devices from Hubbell.

00:12The completely redesigned C series product line is available in both IP 44 and IP 67 versions,

00:18North American amperages include 20, 30, 60 and 100 amps and international ages of

00:2516, 32, 63 and 125 amps. In addition to dual rated devices where

00:31applicable these redesigned devices were built for quick installation and feature numerous

00:36improvements. One of the most exciting new features is the

00:39edge screw less termination available in 30 amp and 32 amp versions.

00:43This technology is the only UL approved screw less termination in an IEC pin and sleeve device with

00:50red activation plungers shipped in the up position.

00:53Installers simply insert each wire into the adjacent compartment and press the red plunger

00:57back down for a secure termination with no tools.

01:00This is six times faster than a screw termination with no need to check torque values

01:05or revisit the termination after wire relaxation or thermal cycling.

01:09Just install once and you're all set.

01:12Both IP 44 and IP 67 versions are available. Plugs and connectors have landless water

01:18ingress protection via over molded fingers that provide a watertight seal.

01:23These devices also feature superior strain relief once cable clamps are secured with

01:28stainless steel screws. This design allows for easy inspection and

01:33eliminates the need to open the housing 60 amp and 100 amp plugs and connectors have a two

01:38piece housing that is secured with a single locking tab providing IP 67 watering grass

01:44protection configurations with a ground pin at either six or nine o'clock are available with

01:50dual U and VDE ratings for European customers.

01:54This dual rating conveniently reduces the number of SKUs as devices are rated for both

01:59markets. 20 and 30 amp devices are conveniently sold in packs

02:03of 10 with 60 and 100 amp devices sold in packs of five. Bulk packs

02:08save handling time and greatly reduce waste. Making them the ideal choice for the

02:12environment. All the great time and cost saving features of

02:16the Hubbell PRO Pin and Sleeve line are undeniable for more information about these

02:20devices visit www.hubbell.com/wiringdevice-kellem/en
