00:06Hubbell Wiring Device-Kellems is proud to introduce its first Plenum Rated enclosure for

00:11its in reach cord reels. This UL 2416 listed enclosure allows you to

00:15install cord reels and drop ceilings while also isolating it from the plenum space.

00:20Simply remove a ceiling tile and secure the enclosure to the building structure with

00:24threaded rods and hex nuts. In accordance to the national and local

00:27building code, add T bar sections to complete the grid around the enclosure.

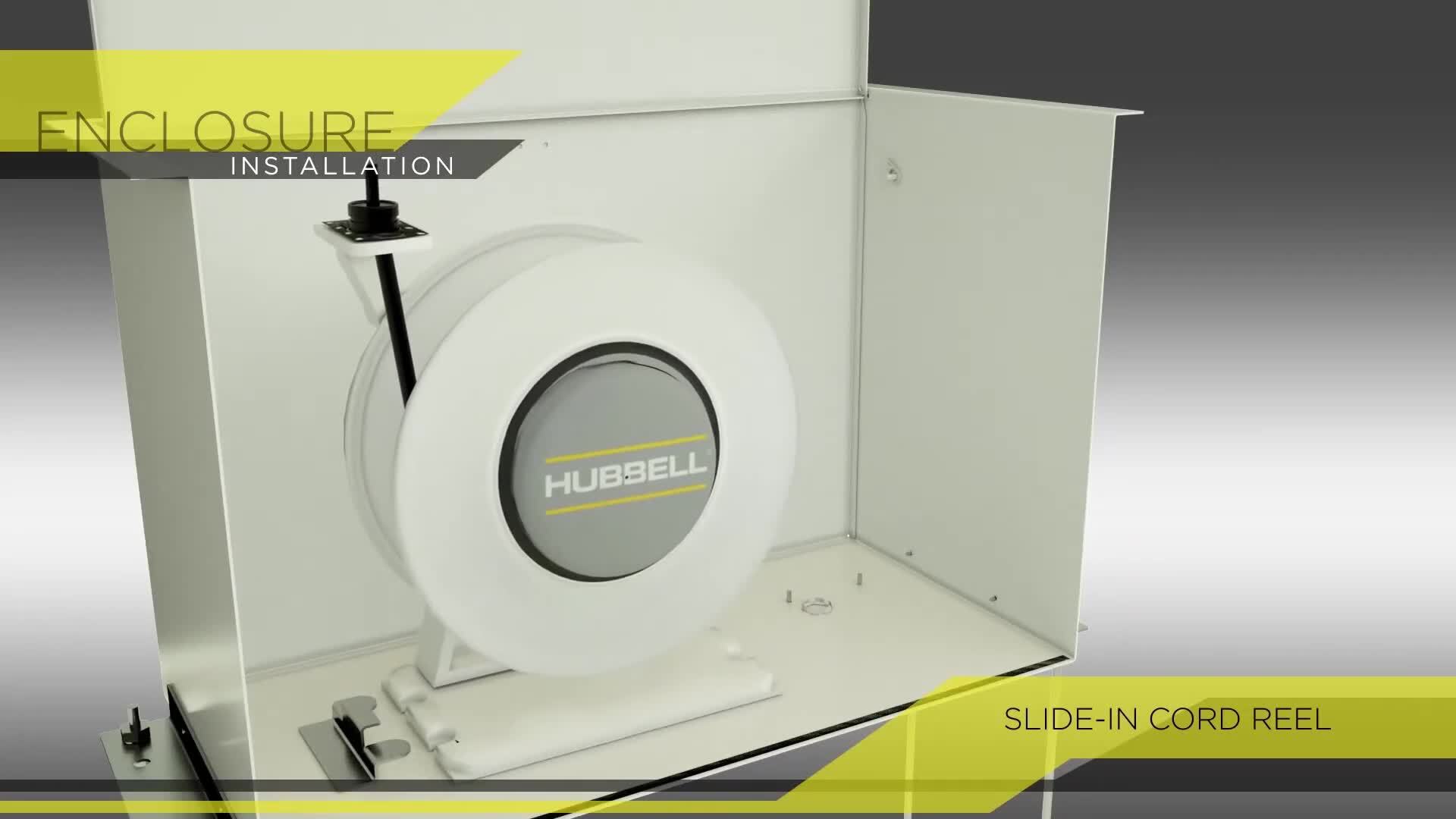

00:33Remove the mounting bracket and slide the cord reel base under the fixed bracket,

00:43reinstall the remove bracket and secure the reel in place.

00:49Remove the knockout plug from the enclosure and then remove the appropriate knockout from the

00:54four square outlet box before securing it to the enclosure.

00:58Install the appropriate electrical outlet receptacle and cover plate per manufacturer's

01:02instructions and any C requirements, then plug the reel end to energize.

01:07If the cord reel end is too large to fit through the door opening,

01:10remove the door bracket to slide the cord through, then reassemble.

01:14This completes the installation and provides a nice clean look for all the reels in your

01:18application. Remember no matter what you need,

01:21Hubbell is always in reach.
