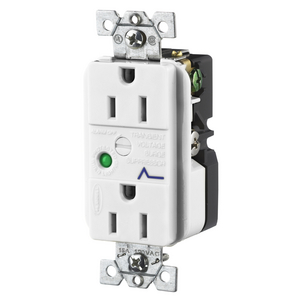

Hospital Grade Surge Suppression Receptacle, Isolated Ground, 15A 125V, 5-15R, White
Brand: Hubbell Wiring Device-Kellems
Catalog ID: IG8262WSA
Hospital Grade Surge Suppression Receptacle, Isolated Ground, 15A 125V, 5-15R, White
Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments. In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
- High-impact nylon face resists breakage
- Automatic grounding clip attached to bridge
- Power-on indicator light verifies instantly that power is available
- Distinctive surge symbol for visual identification of surge suppression receptacle
Product details
General
Application
- Decorator Duplex with Light and Alarm
Catalog Number
IG8262WSA
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
EU RoHS Indicator
No
Indicator(s) Type
LED and Audible Alarm
Item Type
Surge Protection Receptacles
Material
Composite
Material - Mounting Hardware
Mounting Screws
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Outlet
Straight Blade
Performance
- Electrical - Frequency - 60Hz
- Electrical - Protection Modes - Normal and Common Modes
- Electrical - Response Time - Approximately 5 ns
- Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs)
- Electrical - Voltage - 120V AC + 10% - 15%
- Environmental - Flammability - UL 94V-2
- Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
Response Time
5
Series
Hospital Grade
Specifications
- Base Material - Nylon
- Contact Design - Tandem Modified Bypass
- Face Material - Nylon
- Mounting Screws - Steel-Zinc Plated
- Power Contacts - .031" (.8) Brass
Style
Isolated Ground
Type
Duplex
UPC
783585060927
Dimensions
Display Size
Standard
Electrical Ratings
Amperage Rating
15 A
Connectivity
Terminal Screws
Current / Amperage Rating
15 A
Current Rating
15 A
Frequency Rating
60 Hz
Phase
Single Phase
Voltage Rating
125 V
Voltage Rating Description
125 V
Certifications And Compliance
Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42
- Listed to UL Standards 498 Receptacles
- UL Listed File E2186
Nema Rating
5-15R
Logistics
Carton Quantity
10
