15A Tri-Power Counter Receptacle, Surface Mount, Aluminum

By Hubbell Wiring Device-Kellems

Catalog ID: RCT600ALU

By Hubbell Wiring Device-Kellems
Catalog ID:  RCT600ALU

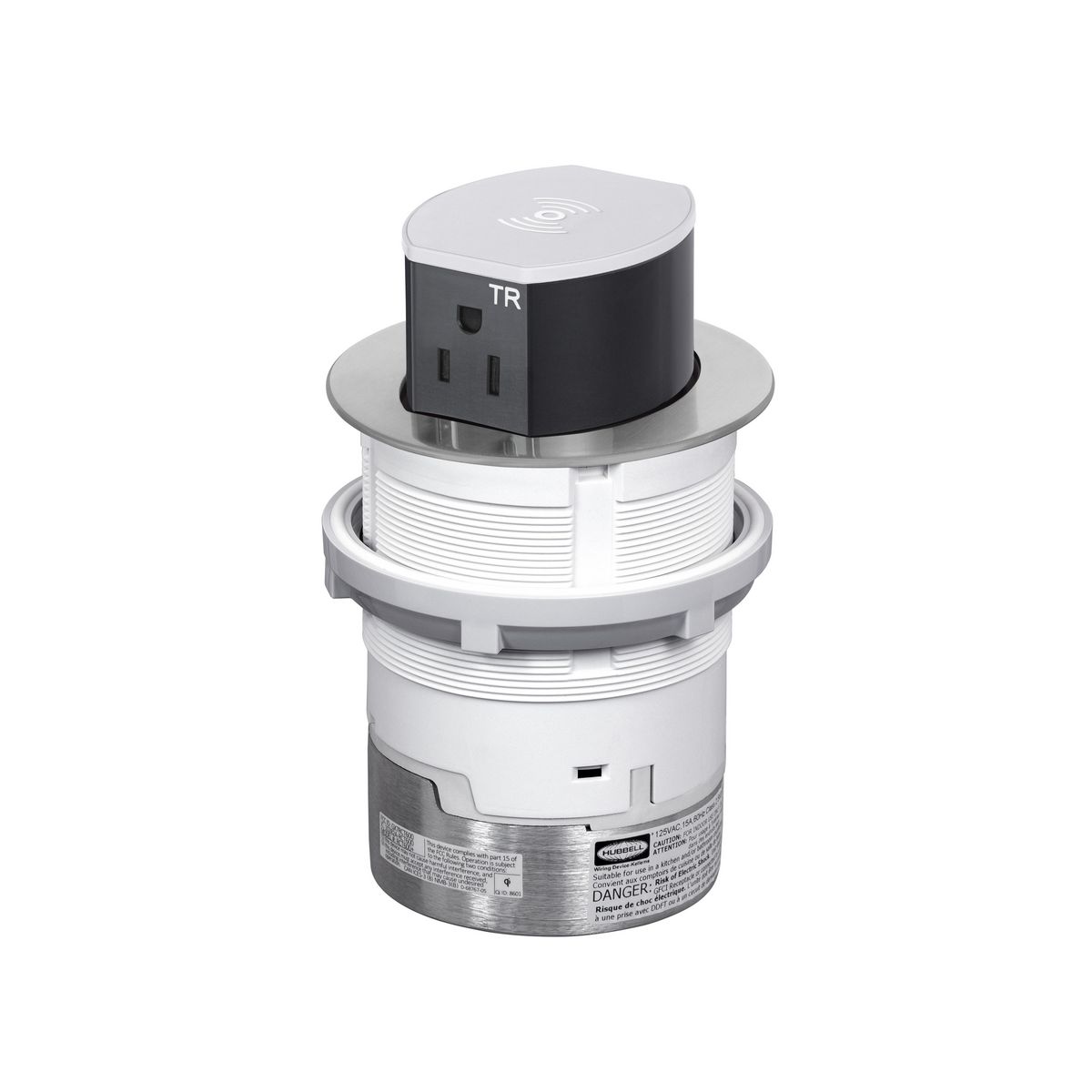

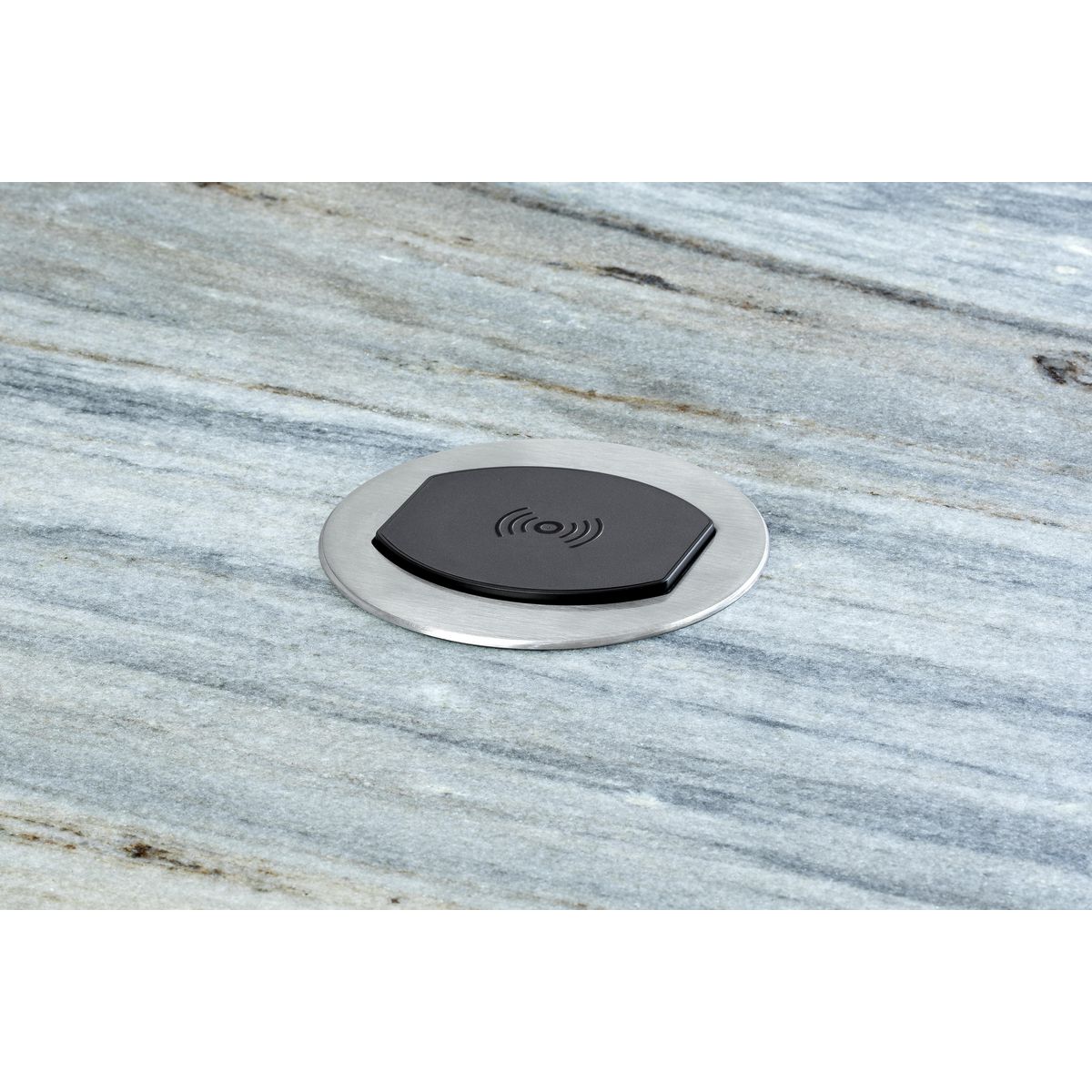

15A Tri-Power Pop Up Counter Receptacle, Surface Mount, Aluminum & Color Kit

Hubbell Countertop Receptacles are the first pop-up Hubbell Pop-Up receptacles UL listed for countertop applications and permanent installations. Receptacles for countertops provide a power source ideal for kitchen and bath counters and islands. Hubbell is the first to market a countertop receptacle that is UL Listed. It allows compliance with NEC® 406.5(E) [countertops], 406.5(F) [work surfaces], and 406.5(H) [seating areas]. Pop-Up Receptacles are tested and water resistant to a half gallon spill. The receptacles feature Hubbell’s patent pending silicone gaskets and patented cam action tamper-resistant technology. The compact design minimizes space required on the countertop as well as underneath in the cabinet area.

  • Spill water tested
  • UL Listed for countertop installation.
  • Permanent installation ready (suitable for MC cable or non-metallic sheath cable
  • Easy installations - simply drop in and tighten.
  • Charge multiple devices at the same time
  • LED Light indicates power to the ports

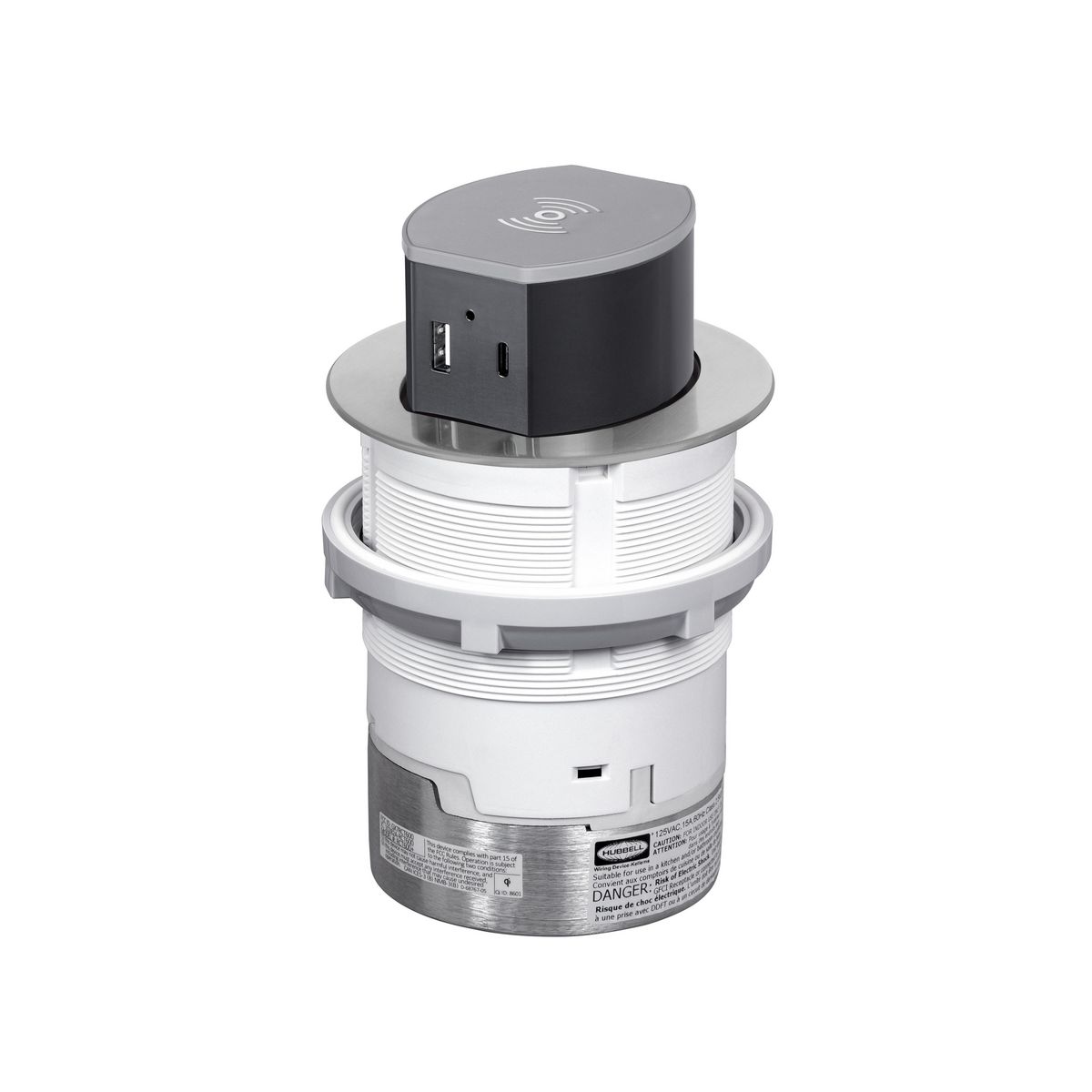

  • Type A and C USB ports
  • Durable: Push-down to pop-up function is rated for a minimum of 10,000 cycles
  • Stability: Tower won’t wiggle in enclosure
  • Accepts non-metallic sheathed cable and/or metal conduit
  • Suitable for 20 Amp circuit, end of line
  • Includes 3 replaceable tops in black, white, and grey

Surface Mount

Contact Us
Add to List

More Options

Where to Buy

Product Details

General

Application Power on Counter Top
Color
  • Aluminum
  • Aluminium
Construction Fabricated
Knockouts 1 - 1/2 Inch Knockout
Material 220 Meunt
Mounting Type In Kitchen Counter Top
Number Of Outlets Combo Single/USB
Number Of Poles 2
Series Countertop Receptacle
Size Standard Sized
Style Surface
Sub Brand Under Counter Boxes
Type Wireless, USB & Power
UPC 883778310478

Dimensions

Dimensions 4.75 in x 4.75 in x 7.38 in
Height 7.38 in
Length 4.75 in
Width 4.75 in

Electrical Ratings

Current / Amperage Rating 15 A
Voltage Rating Description 125 V

Conductor Related

Cable Entry Kos in Bottom
Number Of Wires 3

Certifications and Compliance

Industry Standard(s) UL
Nema Rating 5-15R

Logistics

Carton Quantity 10
