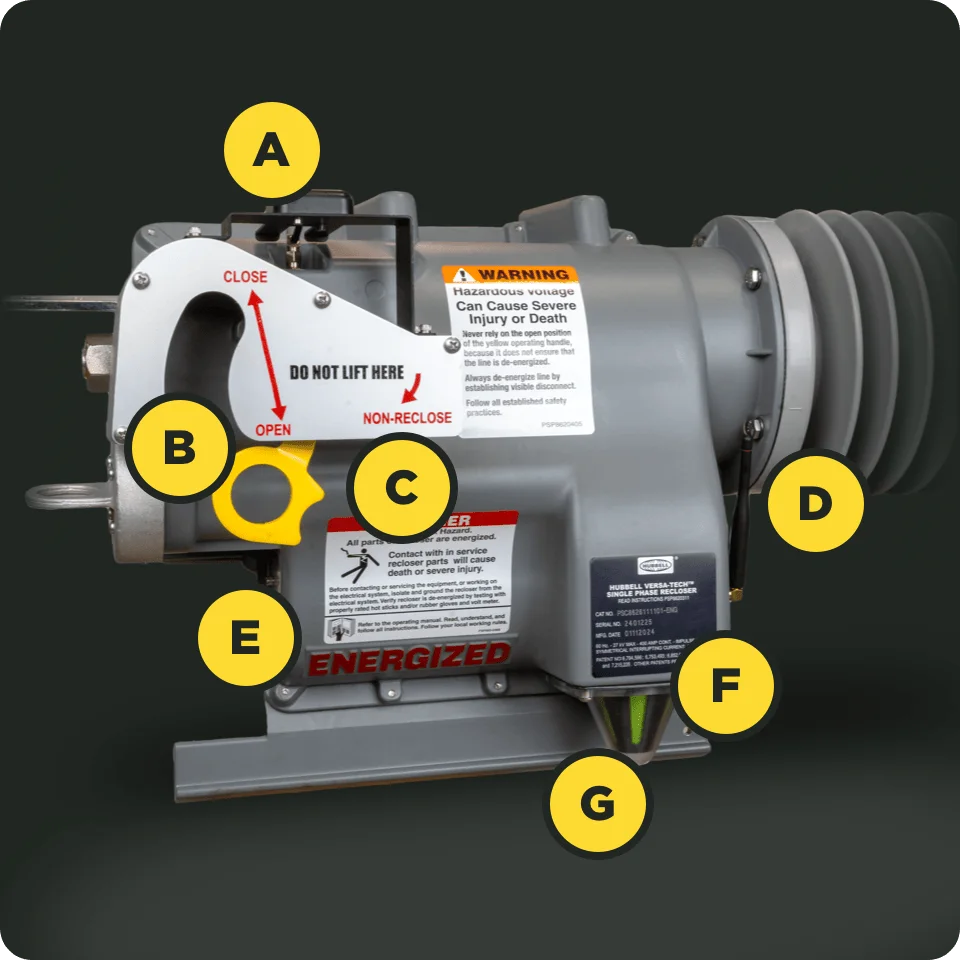

Versa-Tech® XC Single Phase Recloser
Brand: Hubbell Power Systems
The Versa-Tech® XC Recloser (VTXC) is the newest addition to the Versa-Tech® Single Phase Recloser Family. The VT-XC was developed on the VTII platform and has the same ratings but includes added features and enhanced operational functionality. As with the entire Versa-Tech® product family, the VT-XC is an electronically controlled recloser configurable with a User Interface (UI) through wireless or serial communications. The VT-XC has enhanced power harvesting capabilities which can power WiFi/Bluetooth or 900MHz Radio communications at lower line loads (6A vs. 10A). These enhancements also provide the ability to power Hubbell’s VT-powered cellular modem, which incorporates onboard SCADA communication. SCADA communication with the use of a Versa-Tech Terminal Unit is also available.
Pole mount, Single-phase recloser solution from Hubbell Power Systems with vacuum interruption technology and programmable electronic controls, suitable for all medium voltage distribution class applications up to 29.3kV.
- Single phase recloser with magnetic-vacuum interruption technology
- 8kA, 29.3kV Interrupt Rated
- 400A Continuous Current Rated
- 125kV BIL (150kV BIL with standoff insulator)
- 30,000 Mechanical operations
- Long-range communication via SCADA Cellular Modem (SCM)
- DNP3 via Versa-Tech Terminal Unit (VTU)
- Local communication via WiFi, Bluetooth, Digi, or Serial
The user-selectable minimum trip, Time-current curves (TCC) and sequencing parameters, GPS Time Stamping, Load usage and fault histories, Oscillography, User-level permissions, Cyber security per IEEE 1686-2007, Lockout beacon, Non-Reclose/Hot-Line Tag, and more.
Product details
General
Ambient Temp. Range
-40°C to 60 °C
Type
Versa-Tech® Single Phase Recloser
Dimensions
Weight
48 lb
Electrical Ratings
BIL
125 kV
Current Rating
400 A
Frequency Rating
60 Hz
