Utility Structure Foundations

Solutions
Because of their many advantages, helical pile usage continues to grow in the construction of power and communication structures. The Hubbell team is committed to supporting our customers with:
- PDH-eligible training (virtual and in-person) - learn to solve challenging foundation requirements as we present real-world examples in our Transmission and Substation Foundation Design Seminar
- HeliCAP helical capacity design software is a free tool that supports your engineering team with their helical foundation and anchor designs
- Unrivaled engineering support. Hubbell Application Engineers can discuss and recommend a helical pile solution that is right for your project. Contact them via the design request form
REQUEST A DESIGN

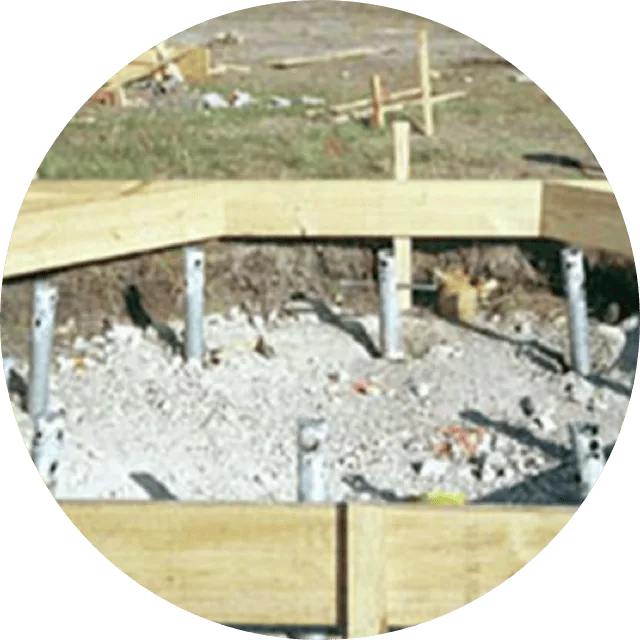

Helical Piles

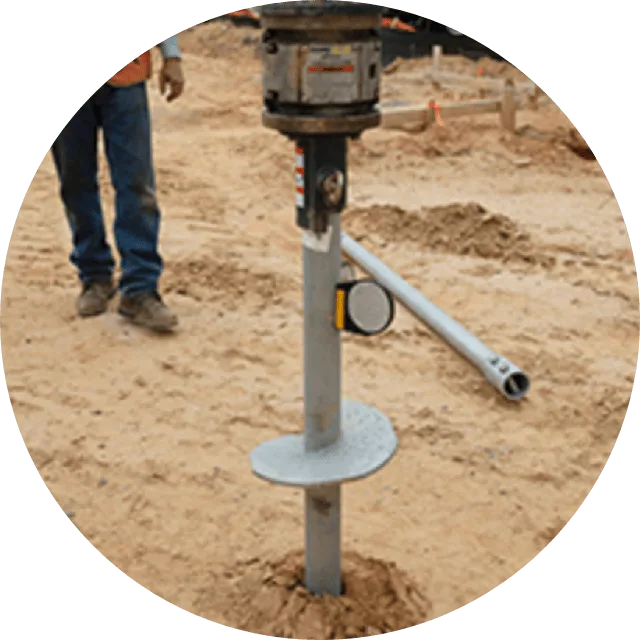

CHANCE® helical piles install in almost any type of terrain including flood plains, glacial till, sand, swamps and bogs. Where soft soil conditions will not support heavy installation equipment, helical piles offer a logical choice. Their lighter installing equipment also lowers mobilization costs.
Benefits of helical piles include:
- Cut time and costs
- No soil removal
- Rapid installation
- Immediate loading
- Green alternative to concrete
- Small installation equipment limits right-away damage
- Install in any weather
- Removable and reusable
- Predictable and measurable capacity
- High capacity options up to 300 kip per pile
- Pile caps transition to concrete cap or grillage tower base

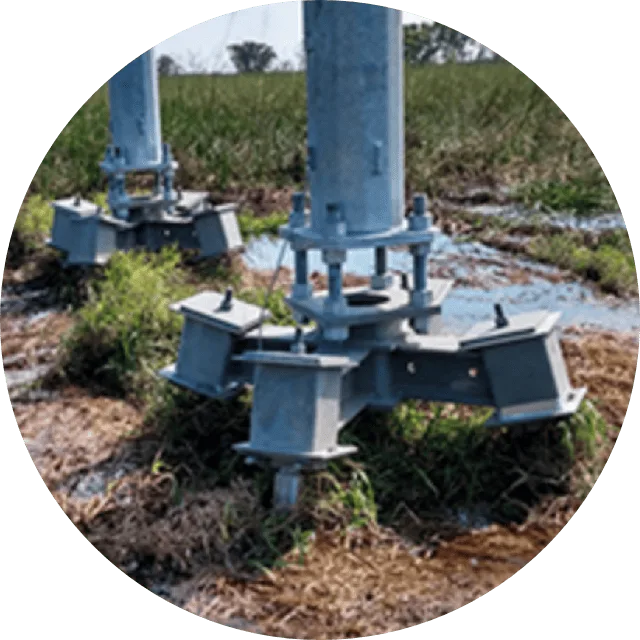

Pole Base Grillages
Grillages consist of a welded steel plate and hollow structural steel and are used to attach helical piles to structure bases or tower legs. This results in a stable foundation, even in less-than-ideal conditions. Non-shrink grout is used to fill the void between helical pile and grillage hollow structural steel. This allows extra flexibility during pile installation.
Grillage intended to be used with:
- 3.5” & 4.5” diameter helical pile piles (softer soils)
- Micropiles (harder/rocky soils)
