Anchor, Tool, Kelly Bar Adapter, 2.5in Hex, 12,000 ft-lb rating

By CHANCE Utility

Catalog ID: C3030936

By CHANCE Utility
Catalog ID:  C3030936
Anchor, Tool, Kelly Bar Adapter, 2.5in Hex, 12,000 ft-lb rating

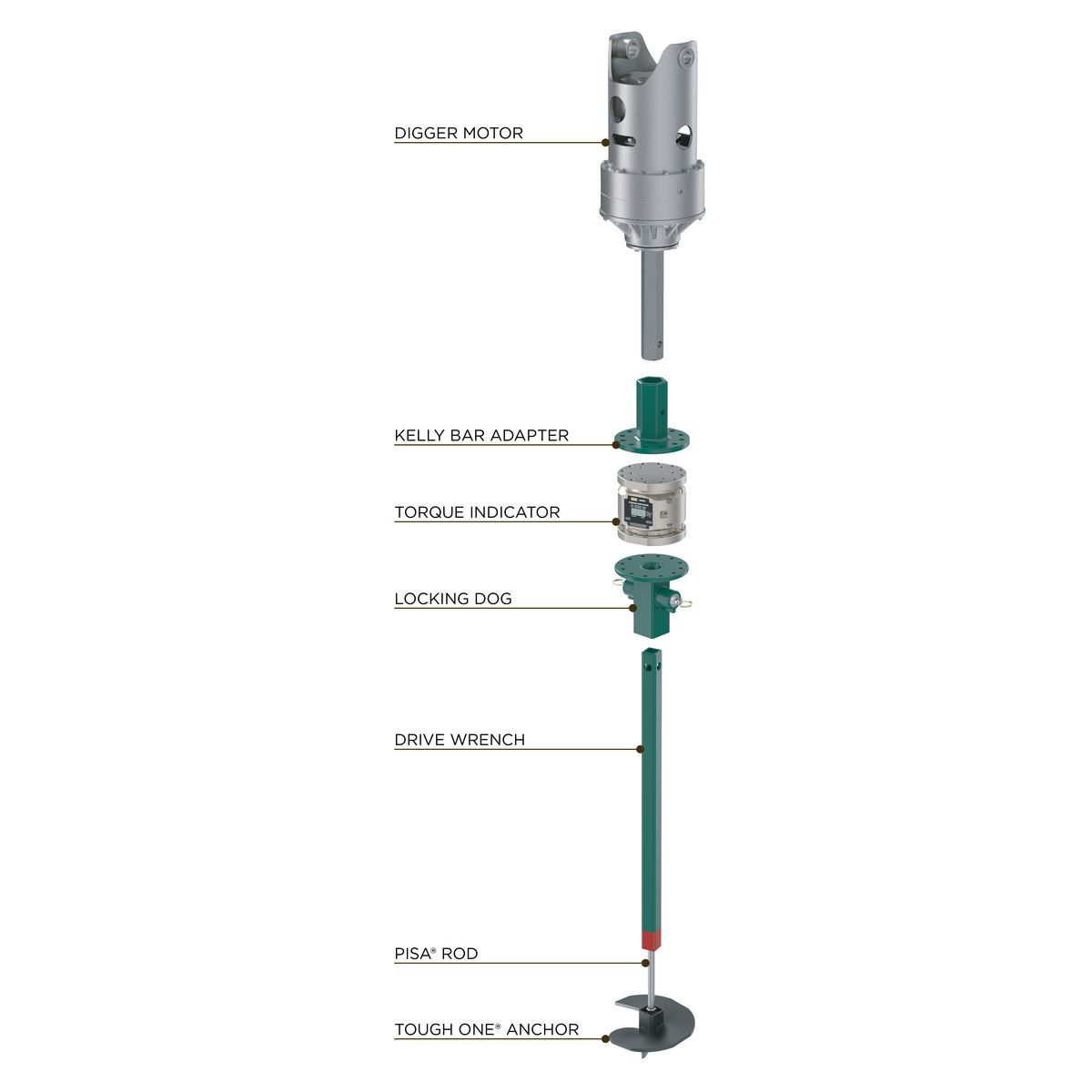

Kelly Bar Adapters attach to the digger/torque motors square or hex shape drive shaft to install anchors or piles. Chance Kelly Bar Adapters are cast steel and painted green. They come with a Bent Arm Pin used to attach the adapter to digger/torque motor.

  • Kelly Bar Adapter attaches to truck's torque motor drive shaft (Kelly Bar)
  • Kelly bar adapter has twelve holes for 5/8" bolts on a 7-5/8" bolt circle, comes with twelve 5/8" Grade 5 bolts, nuts & lockwashers and bent arm pin with coil lock
  • Painted with green paint
Add to List

More Options

Product Details


Application Anchor/Pile Installation
Bolt Grade 5
Coating Painted
Kelly Bar Shape Hex
Number of Bolt Holes 12
Torque Rating 12000 ft-lbs
Type Anchor/Pile Installation Tools
UPC 096359015291


Anchor Installation Hole Size 0.625 in
Diameter - Bolt 0.625 in
Diameter - Bolt Circle 7.625 in
Dimensions 8.25 in x 10.500 in x 9.500 in
Height 9.500 in
Kelly Bar Adapter Inside Width 2.5 in
Kelly Bar Hole Distance to Flange 4.25 in
Length 8.25 in
Weight 25.480 lb
Width 10.500 in


Pallet Quantity 27
Standard Package 1

Resources and Downloads


Installation/Instruction Manual (IOM)


CHANCE Pisa Drive Tools (VI0633E)
