Anchor, Tough One, 8in, 15,000 ft-lb rating, 2.5in hub,1in threads.

By CHANCE Utility

Catalog ID: C1025000

By CHANCE Utility
Catalog ID:  C1025000

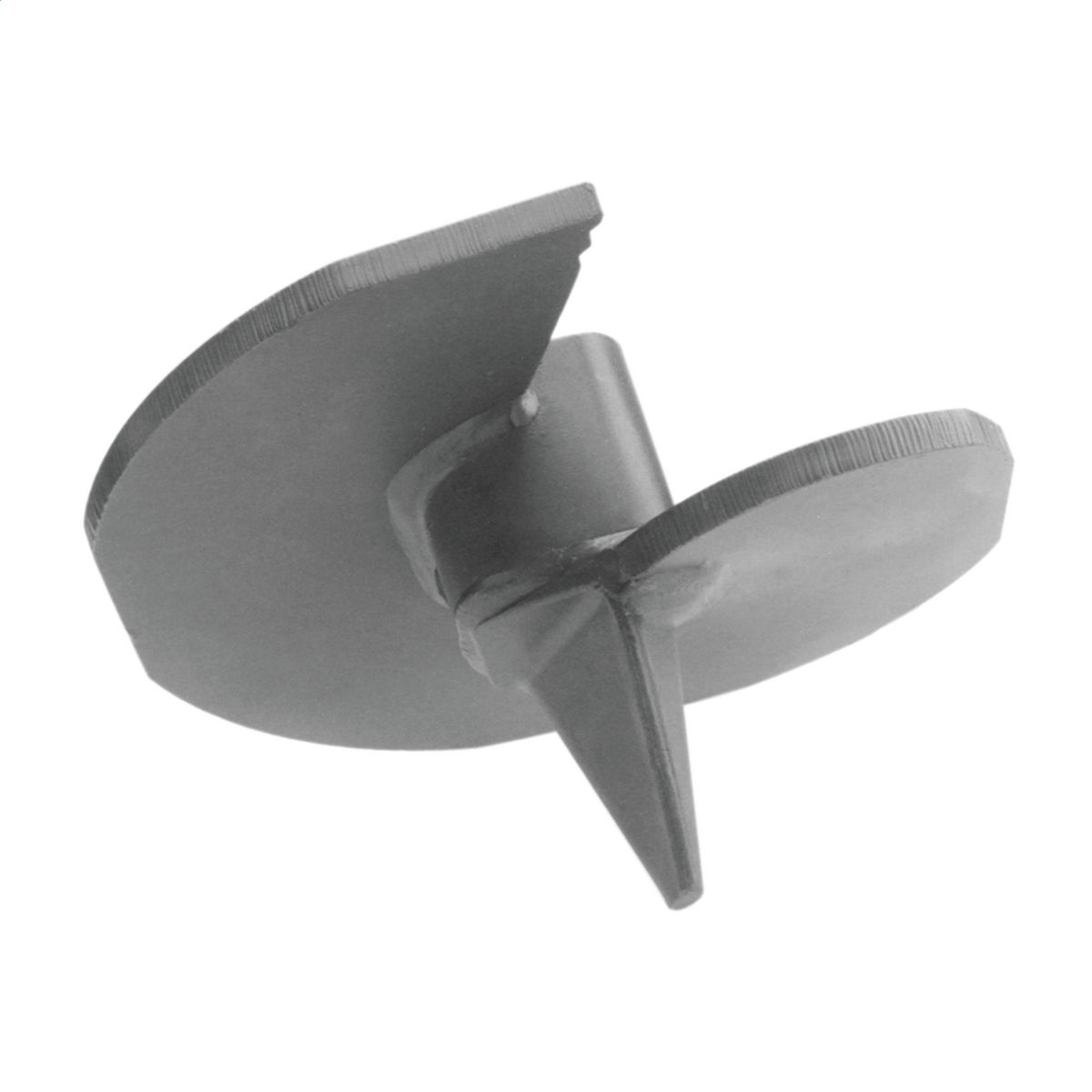

Tough One Anchor Helix, 15,000 Ft Lbs (20,340 N-M), 8" (203 mm) Helix for use with 0.75" (19.1 mm) or 1" (25.4 mm) Rod.

Tough One anchors give users high-strength anchor capability in all soils. You get a better anchor at an economical price. The anchor’s sloped lead point improves penetration and helps soil flow from below the hub to above the anchor. The system consists of a screw anchor, anchor rod and installation tooling.

  • Installed with Chance anchor wrench C3031064 or C3030983
  • The anchor's sloped lead point improves penetration and helps soil flow from below the hub to above the anchor.
  • 1" threads to fit 3/4" and 1" diameter Pisa rod
  • Anchors are painted with a black paint
Contact Us
Add to List

More Options

Get a Quote

Product Details

General

Application Helical Anchoring
Coating Painted
Number of Helices 1
Torque Rating 15000 ft-lbs
Type Anchor Helix
UPC 096359008583

Dimensions

Anchor Helix Diameter(s) 8 in
Anchor Hub Size 2.500 in
Rod Diameter
  • 0.750
  • 1.000 in
Weight 11.437 lb

Logistics

Pallet Quantity 192
Standard Package 4
