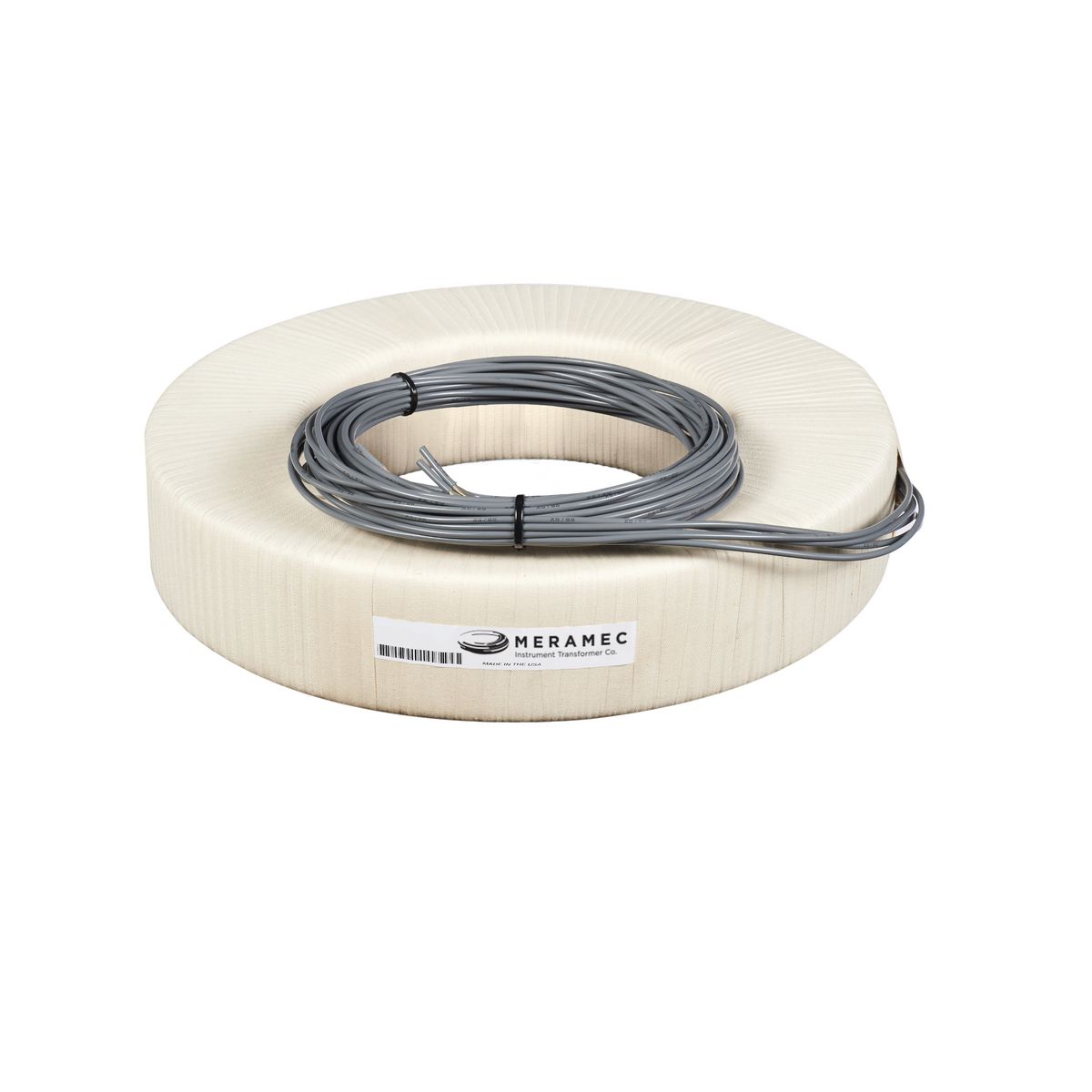

OBCT - Current Transformer - Internally Mounted Oil-Type Bushing CT
Brand:
Meramec
The internally mounted oil-type bushing current transformer (BCT) is designed to be mounted along the ground collar of a high voltage bushing shank, inside the tank of a power transformer, power circuit breaker or voltage regulator. When properly installed, the oil-type BCT can be used on higher system voltage levels while maintaining its own mere 600 Volt class rating. Its simple construction provides a low leakage product with extremely high short circuit capabilities.
Oil-type bushing current transformers are designed to be mounted inside the tank of a power XFMR along bushing shank or in power circuit breakers or voltage regulators. Its construction provides a low leakage product with extremely high short circuit capabilities. Oil-type BCTs can be used on higher system voltage levels while maintaining its own 600 Volt class rating.
- Each unit is customed engineered to fit over any bushing shank
- Designs can be engineered to match existing CT charateristics
- Primary currents greater than 8,000 Amps.
- Gapped cores for remanence control and transient response
- Air core linear couplers
- Rating Factors: Up to 2.0 @95°C Ambient
- Metering class: 0.15S thru 2.4 / 0.2S thru 5.0
- Burdens: B0.1 thru B1.8 / 2.5 - 45 VA
- Available in a variety of winding arrangements, Single Ratio (SR), Dual Ratio (DR) or Multi Ratio (MR)
- NOTE: Sizes and accuracy class are dependent on current ratio.
Product details
General
Application
Relaying and Metering
